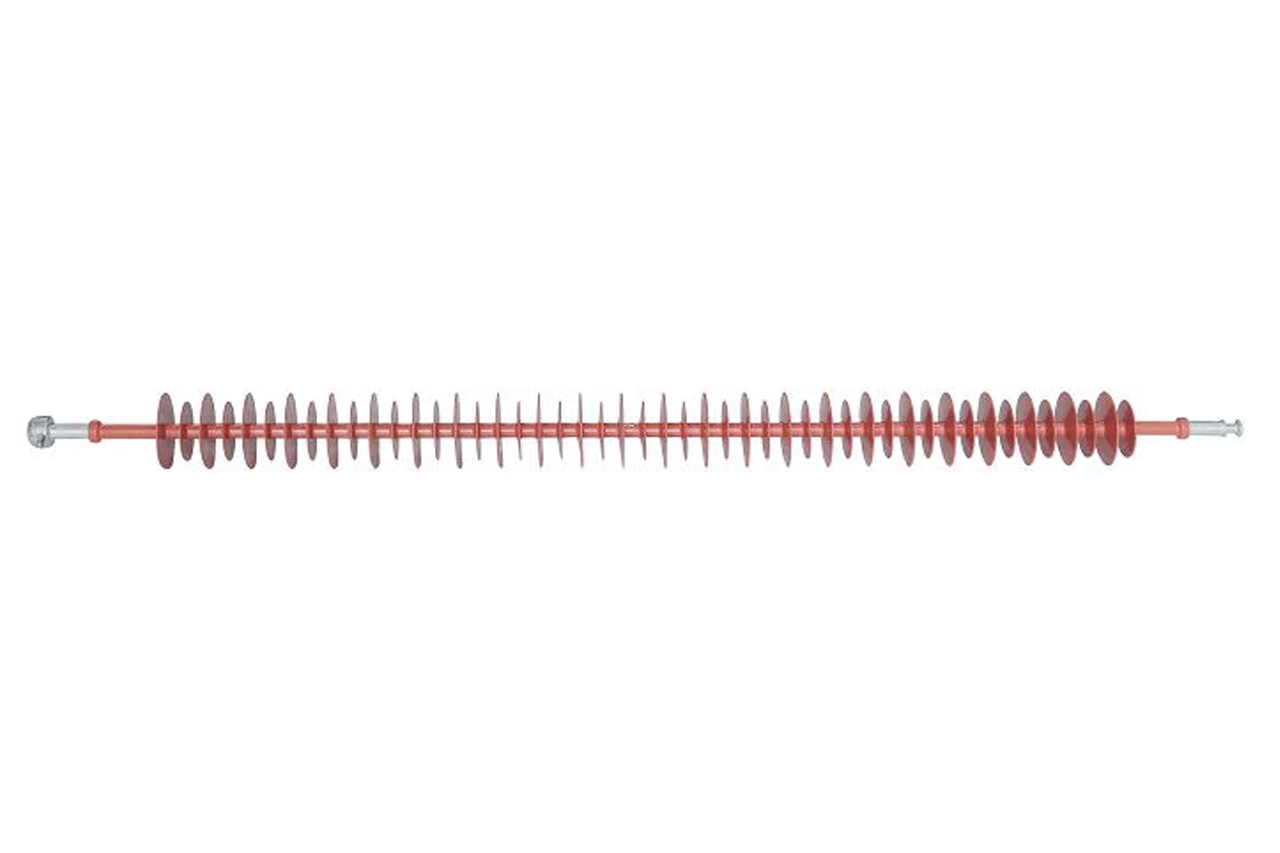

The core of 220kV suspension composite insulator is formed by resin bonding millions of glass fibers arranged in parallel along the axis of the FRP rod, tensile strength is higher than 600MPa, 3 to 5 times higher than high-strength porcelain.
Specified Cantilever Load (SCL): 2-20 kN
Color: Brown, Gray, or Customer’s requirement
Applicable Standard: IEC, ANSI, or Customer requirement
Applicable Condition: environment temperature from -50℃ to +50℃

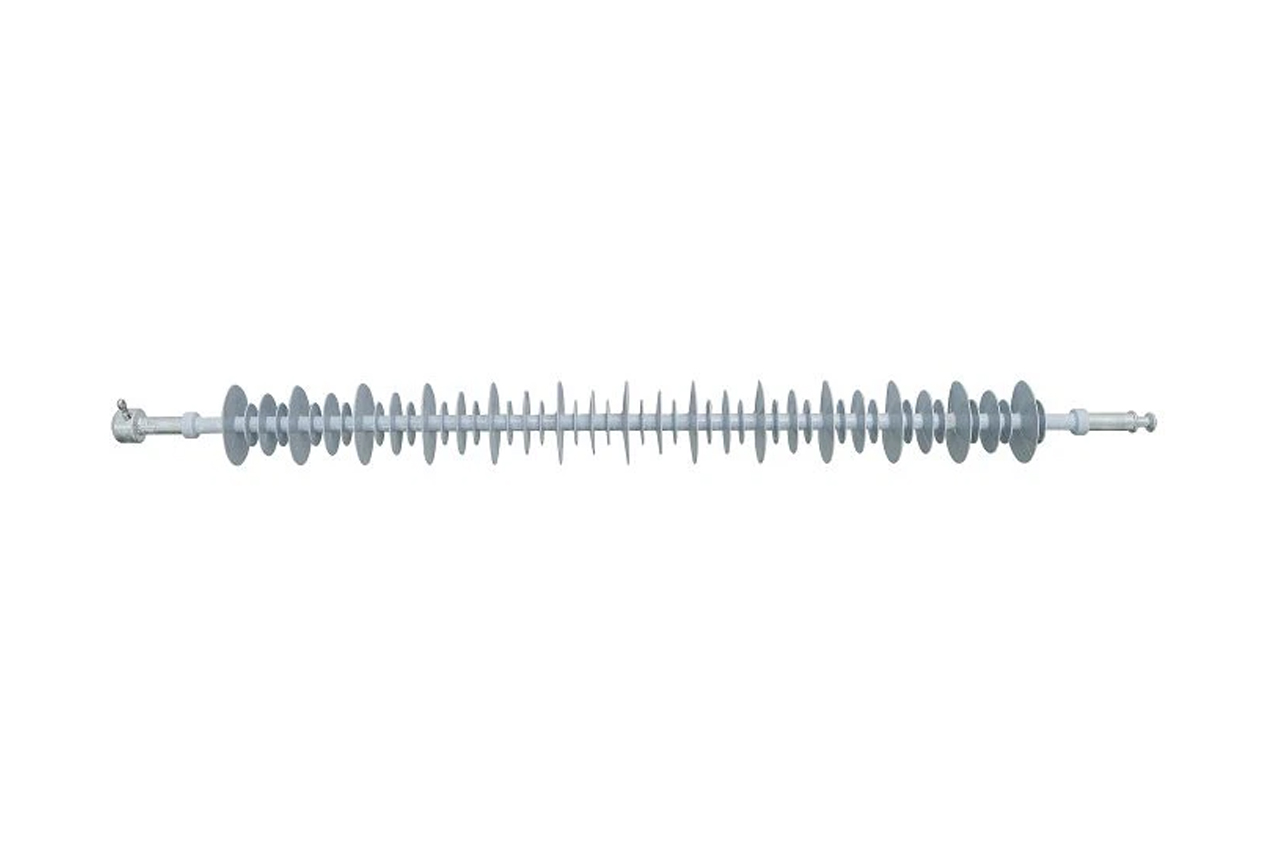

The 132 kV power line composite insulators have been tested and certified by IEC (International), VEIKI, they are light in weight and have demonstrated fixed contamination levels, withstanding voltage characteristics and shock resistance.

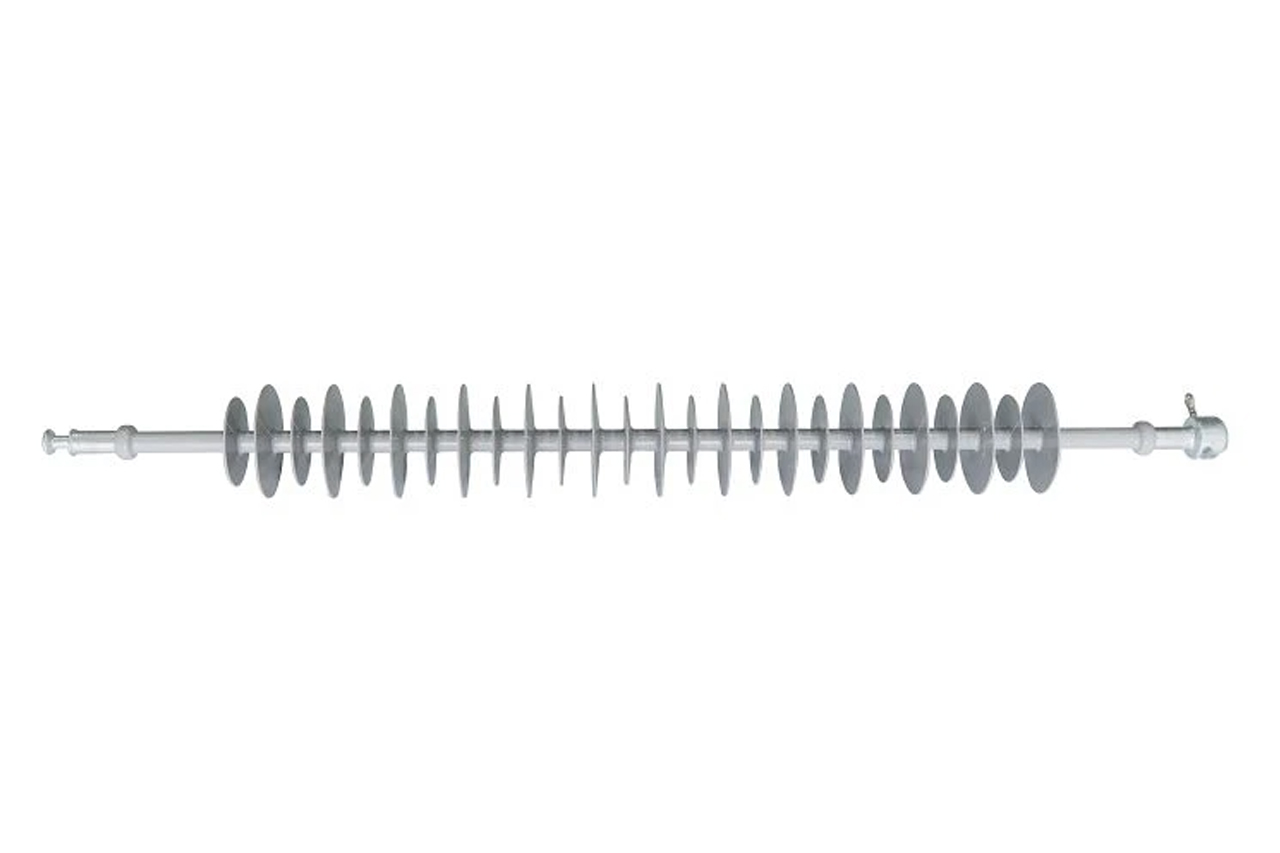

The 110kV composite suspension insulator is mainly composed of the core bar, umbrella sleeve and skirt, metal accessories and other major components.

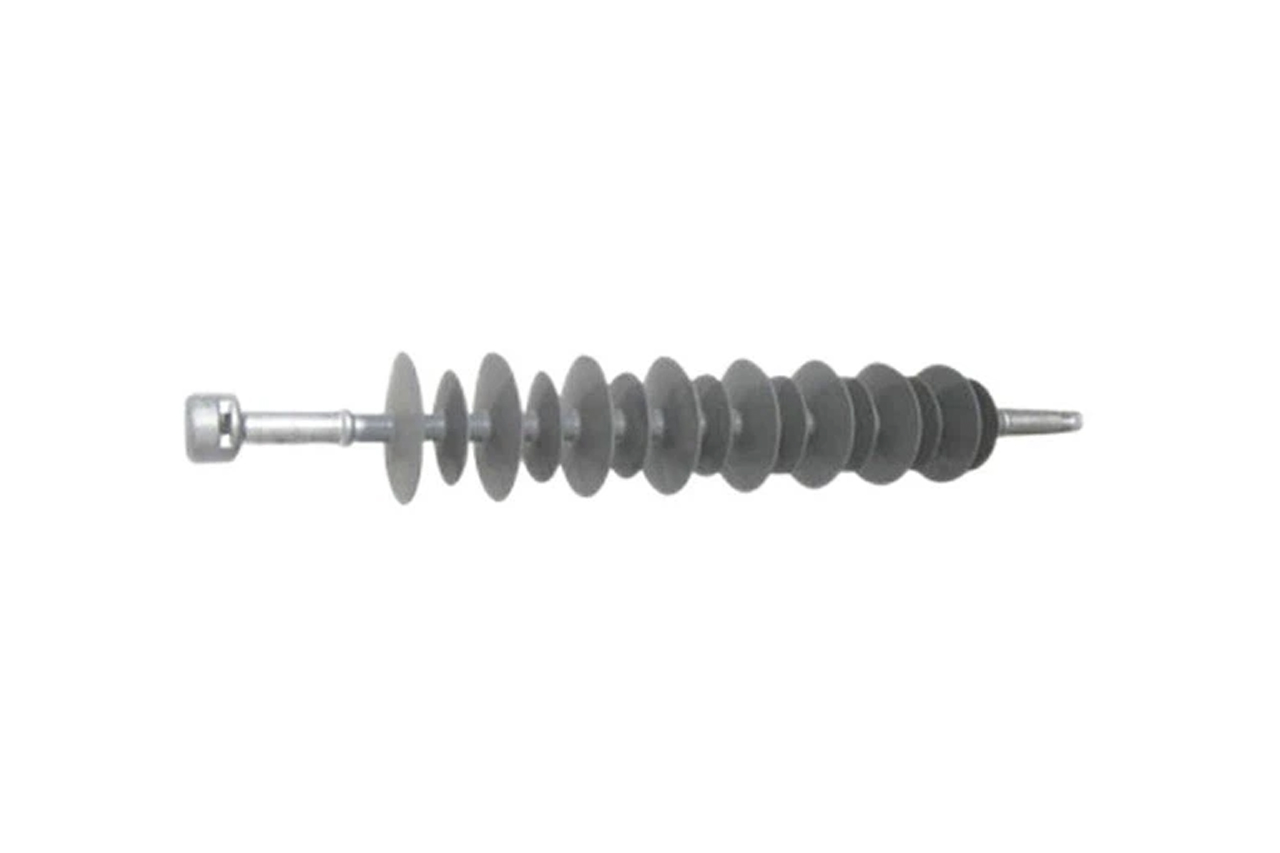

The 66kV composite suspension insulator consists of glass fiber epoxy core, silicone rubber shed and metal fittings.

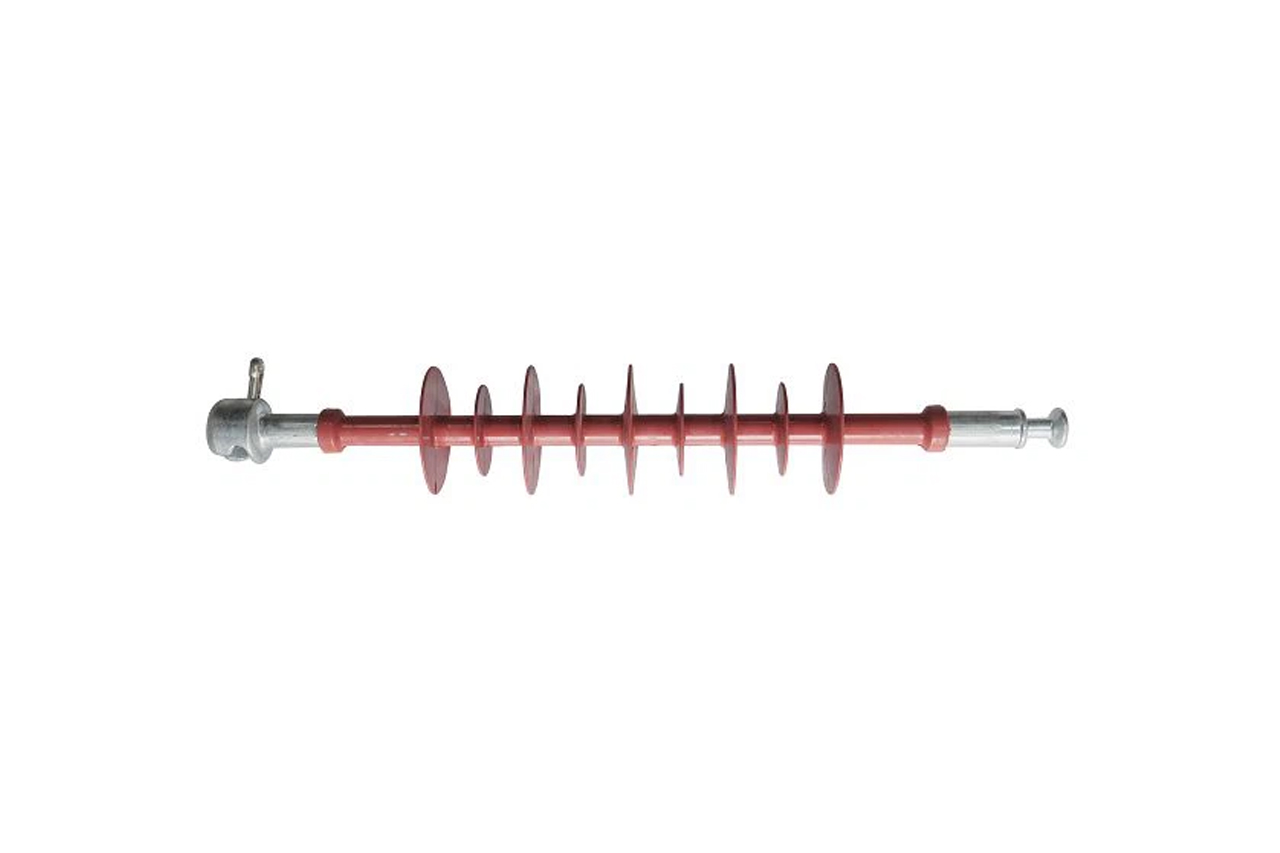

The end of the 35kV composite suspension insulator adopts labyrinth type waterproof design and adopts the outer covering rubber process, which greatly improves the waterproof and impermeable performance of the product.

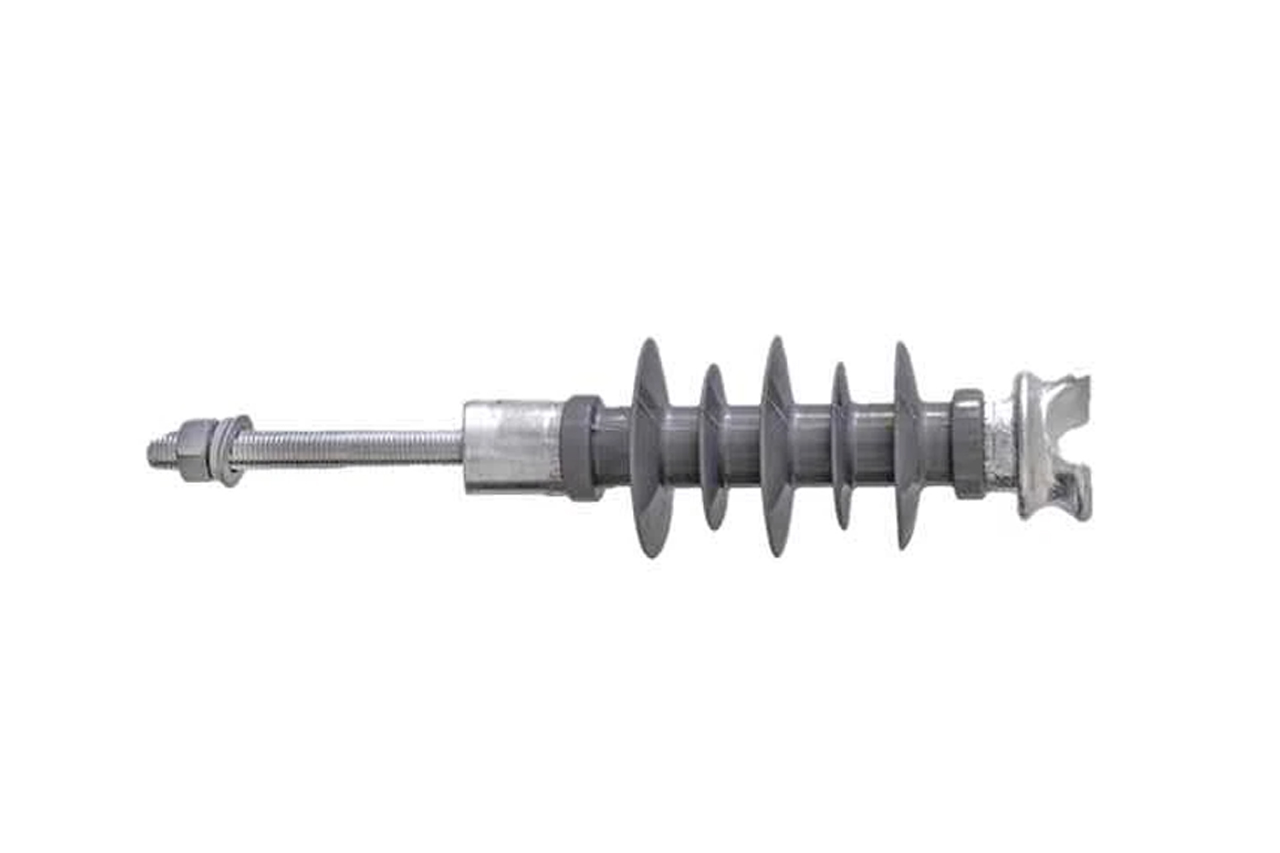

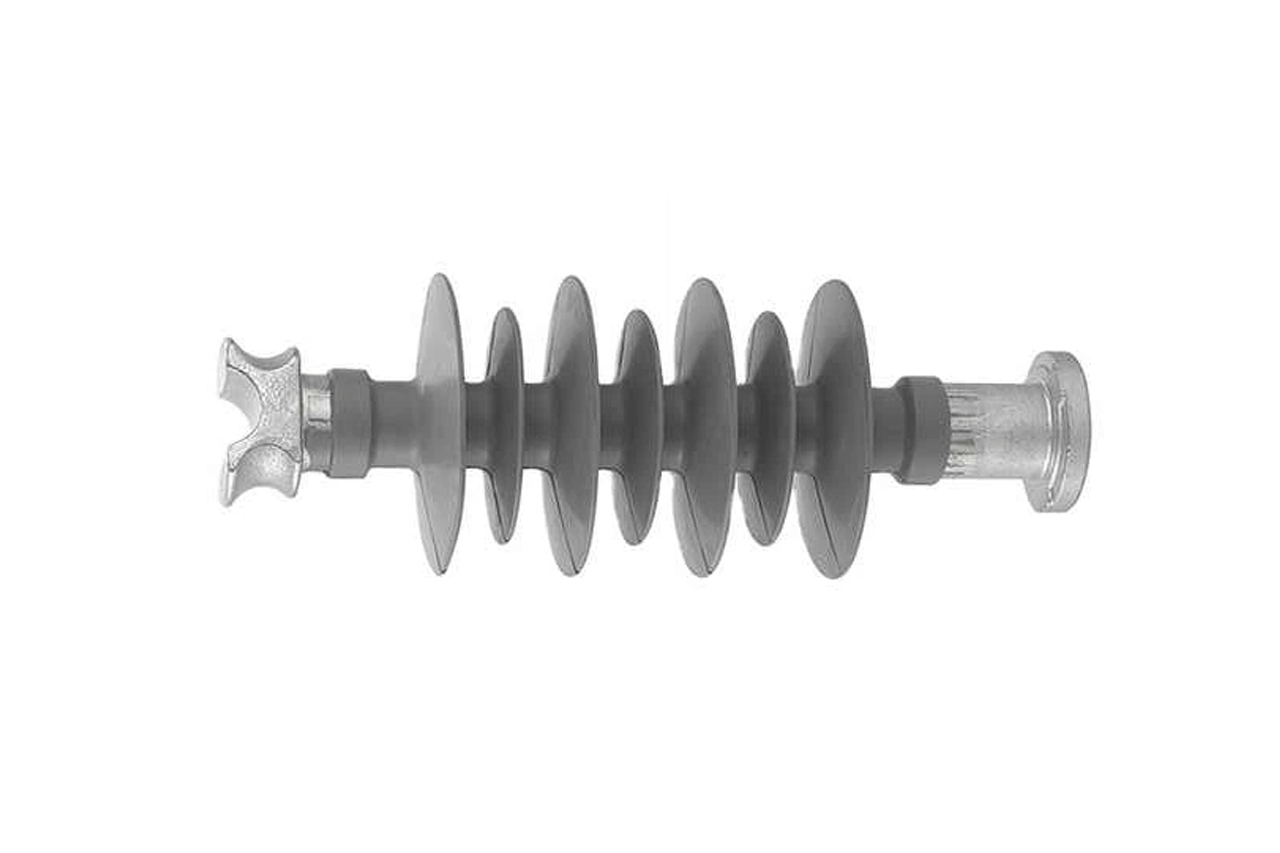

Product Description The polymer pin insulator consists of a core rod, a silicone umbrella and a metal fitting.Pin insulators have high resistance to bending, shock, shock and explosion
Good electrical specification and strong mechanical strength.
Fine anti-pollution,strong prevent flash accident.
Small volume, light weight,easy for transportation and installation.
The shed has favorable waterproof performance and good anti-ageing.
Strong resistance to impact and quakeproof performance.
Special for badly polluted areas,high mecha nical tension load,long span and compact power line.
Characteristics: Small volume and light weight,easy to transport and install. The superior in performance and high intensity mechanical enhance reliability of power line. Extraordinary hydrophobic and resistance to contamination. Long-duration resistance aging and leakage tracking.
